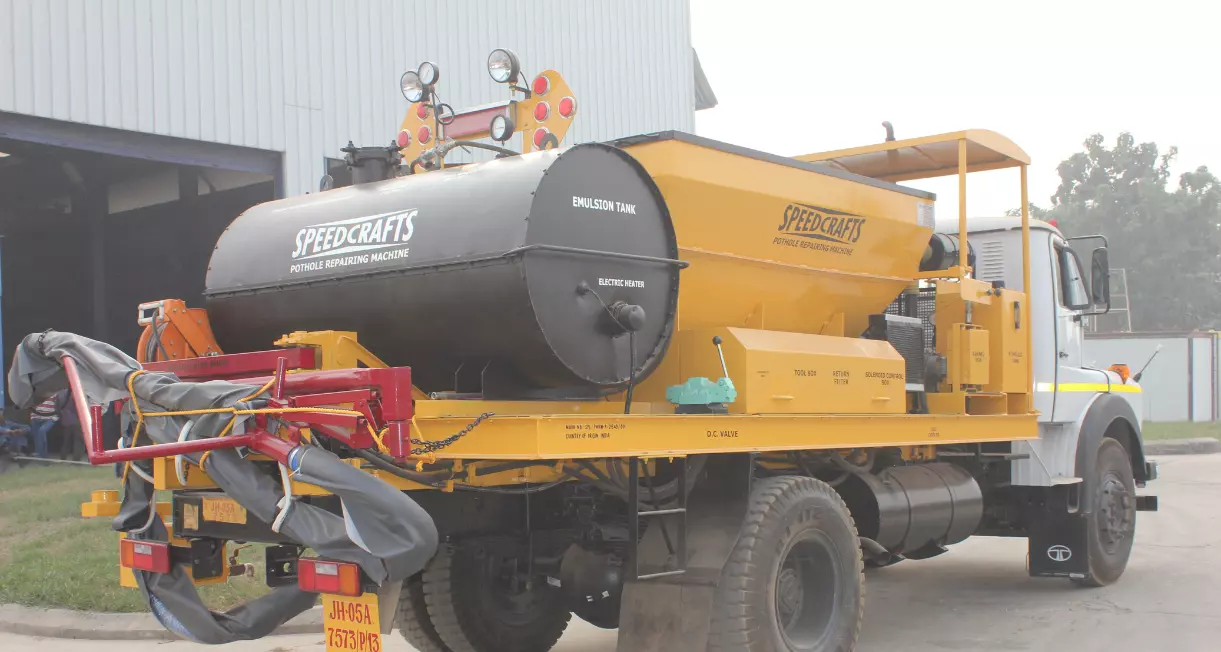

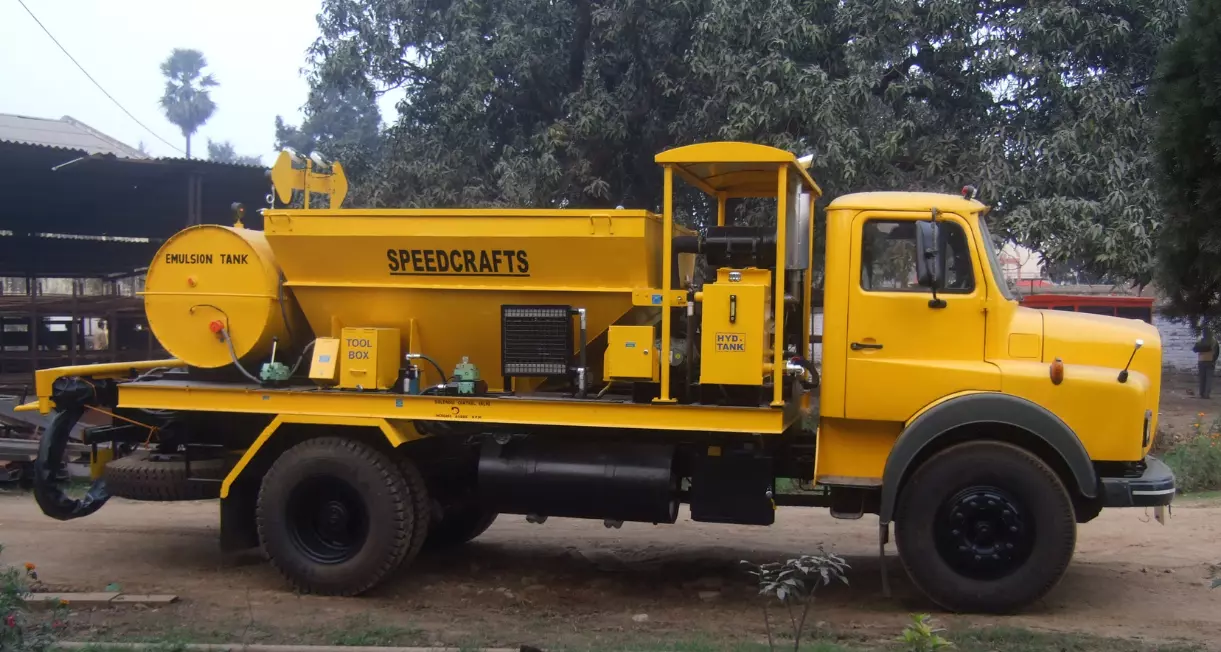

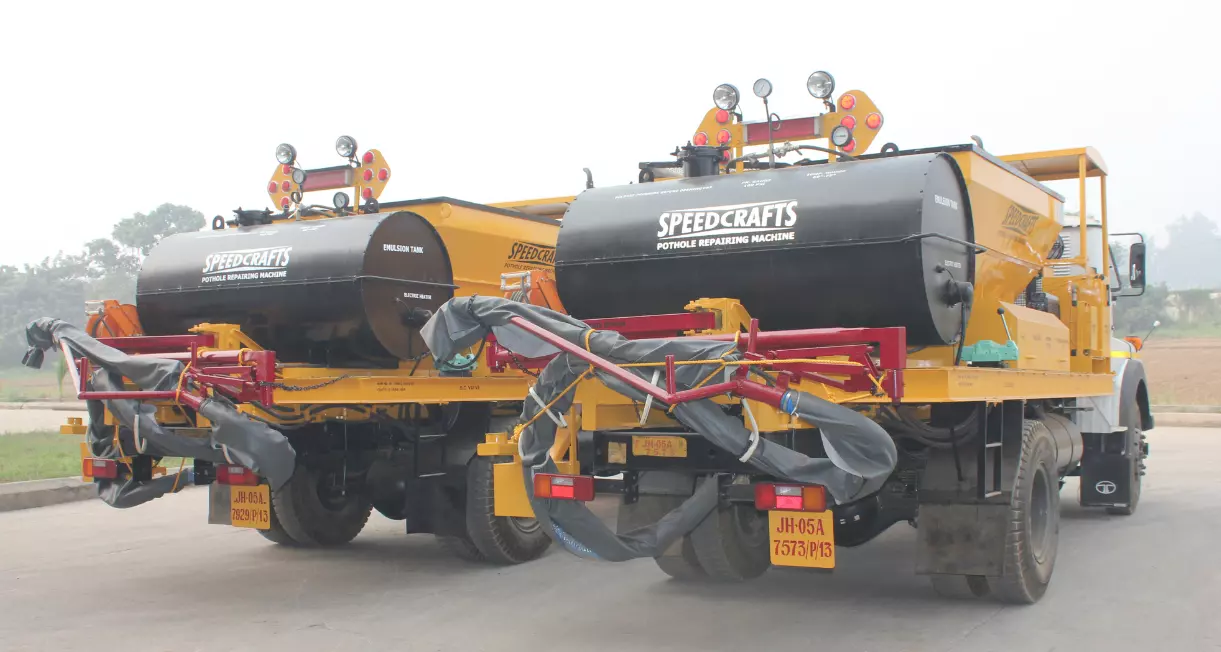

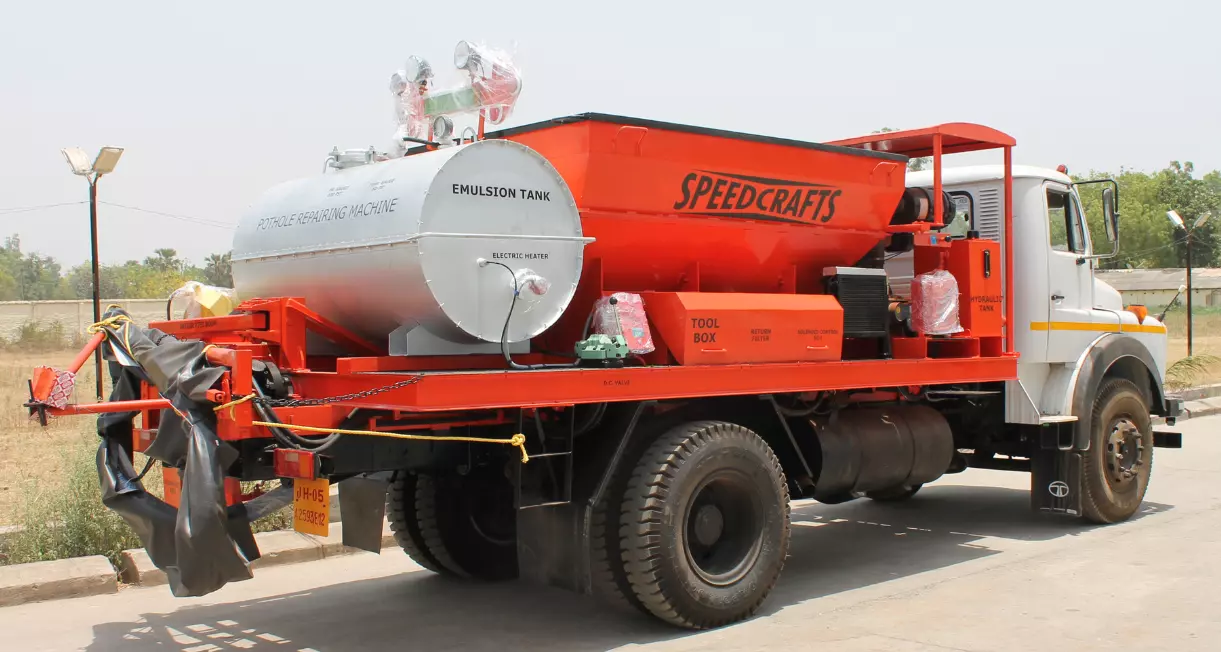

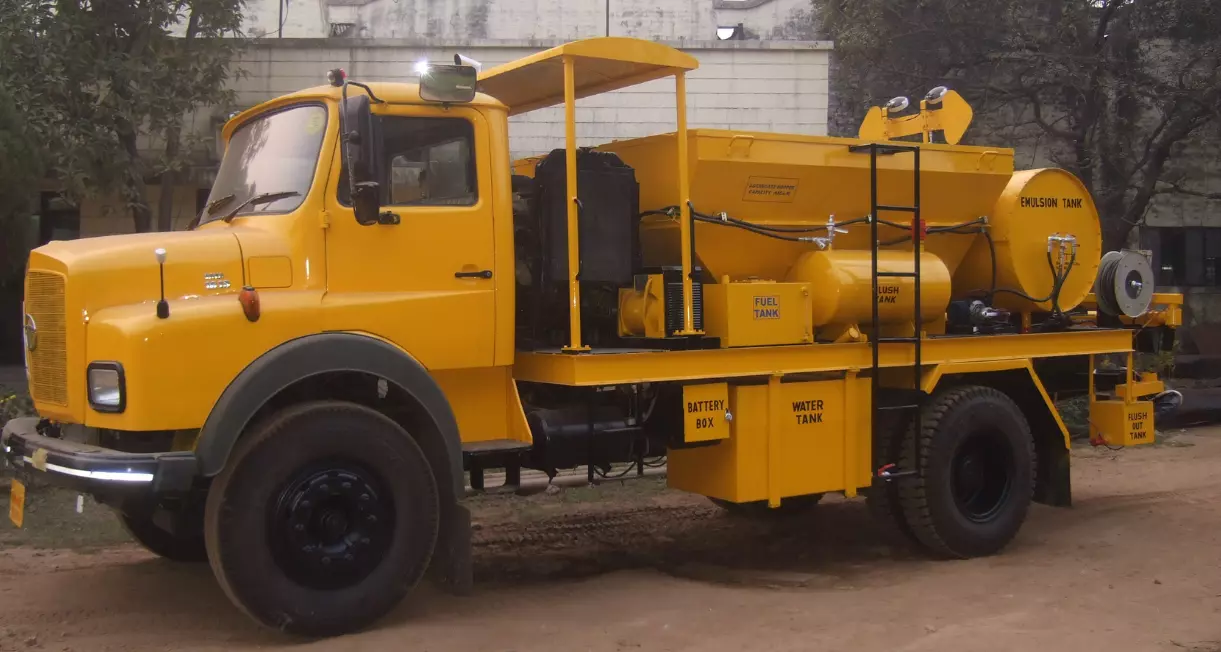

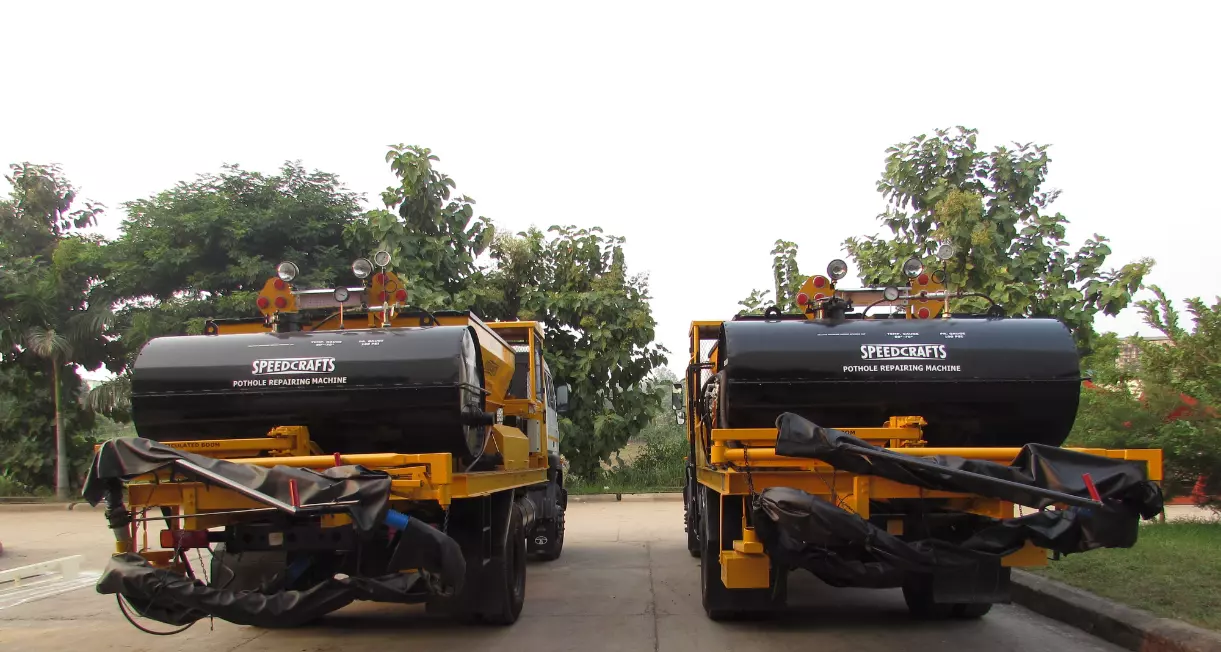

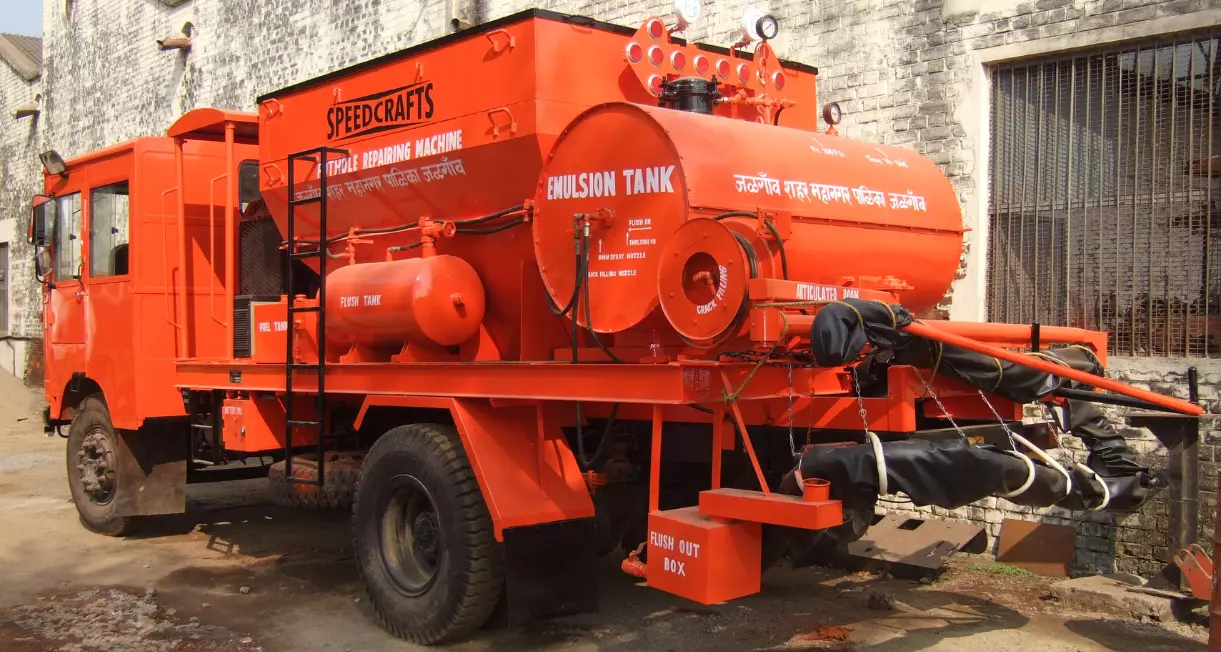

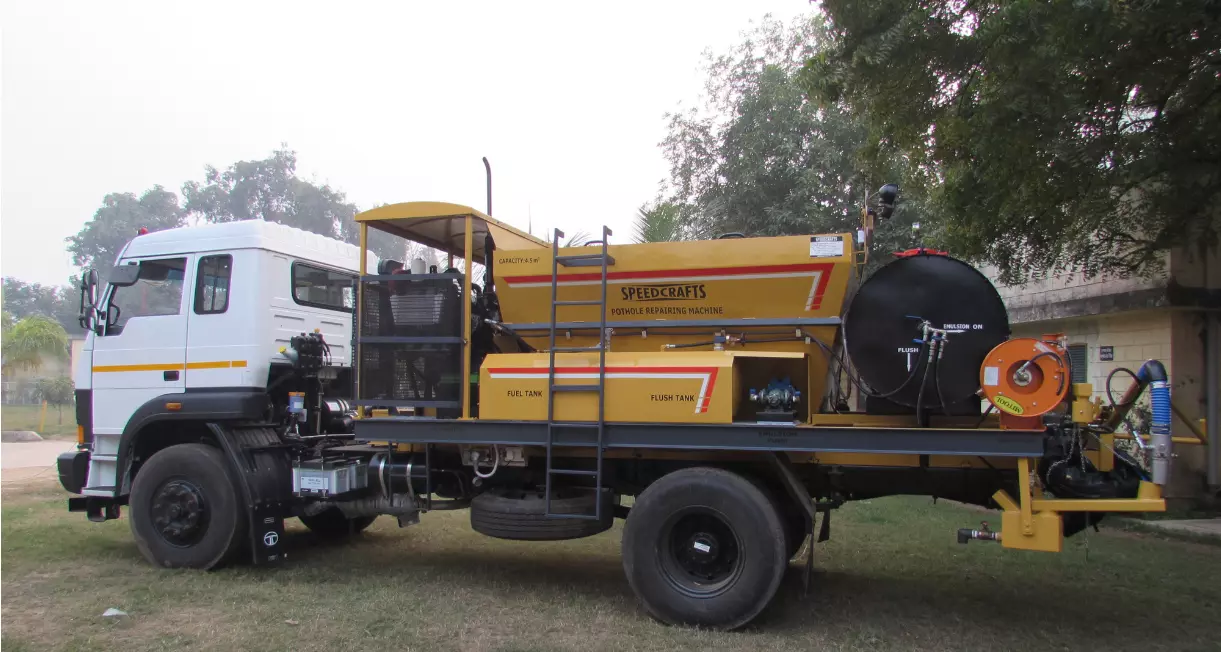

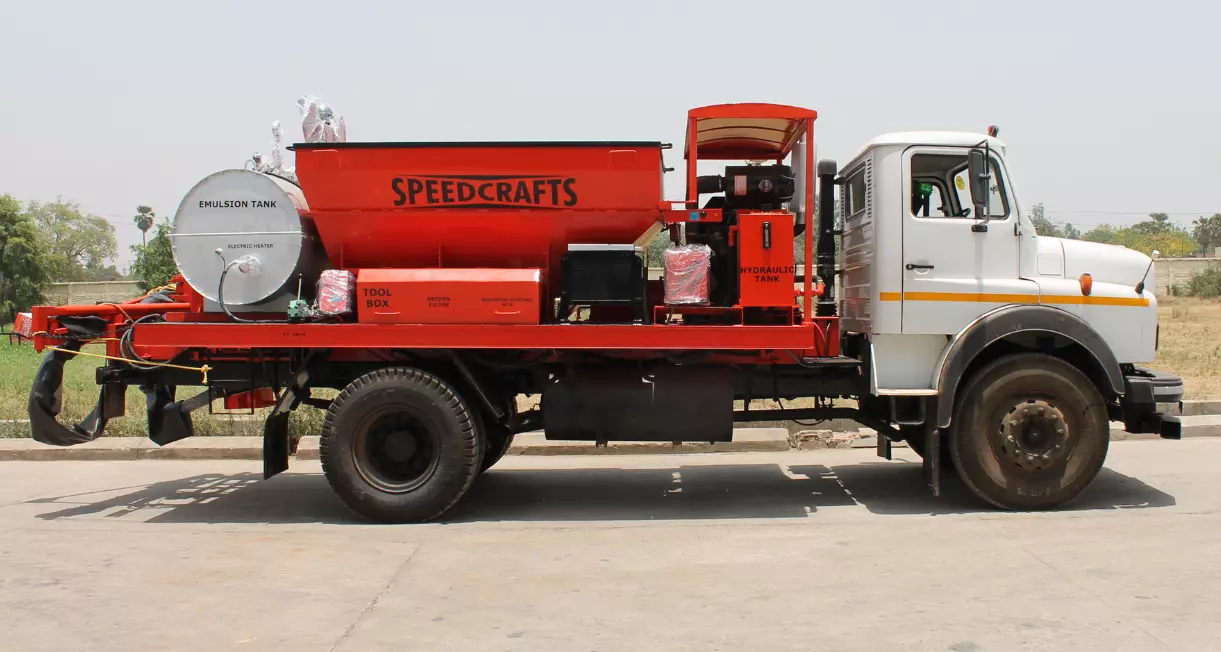

The Pothole Repairing Machine is specially used for swift repairing of cracks, potholes, shoulders, fissures, alligator areas and utility cuts. A smaller amount of not more than 1 kg of pressure locates the boom anywhere within a 100 sq. mtr. working area with a vertical assortment of 1525 mm above to 610 mm below concrete level.

The truck mounted road maintenance machine sprays hot asphalt emulsion over area atomized with the support of an internal spray ring to create a thin tack coat & abundant coated asphaltic material with dense coating for bringing the repaired surface up to required level.

Asphalt Delivery System

From pressurized asphalt tank by opening valve control positioned at operator stations

Color

Yellow & Orange color for highway safety

Crack Filling Attachment

Crack filling baton with control device developed into handle for applying only asphalt material. It is available with the inclusion of rear mounting brackets & self withdrawing reel.

Electrical

The electrical supply to insulated asphalt emulsion line and power asphalt emulsion tank heating element is provided with the help of single phase industrial 220V generator

Optional

Optional accessories available with the trailer mounted pothole repairing machine

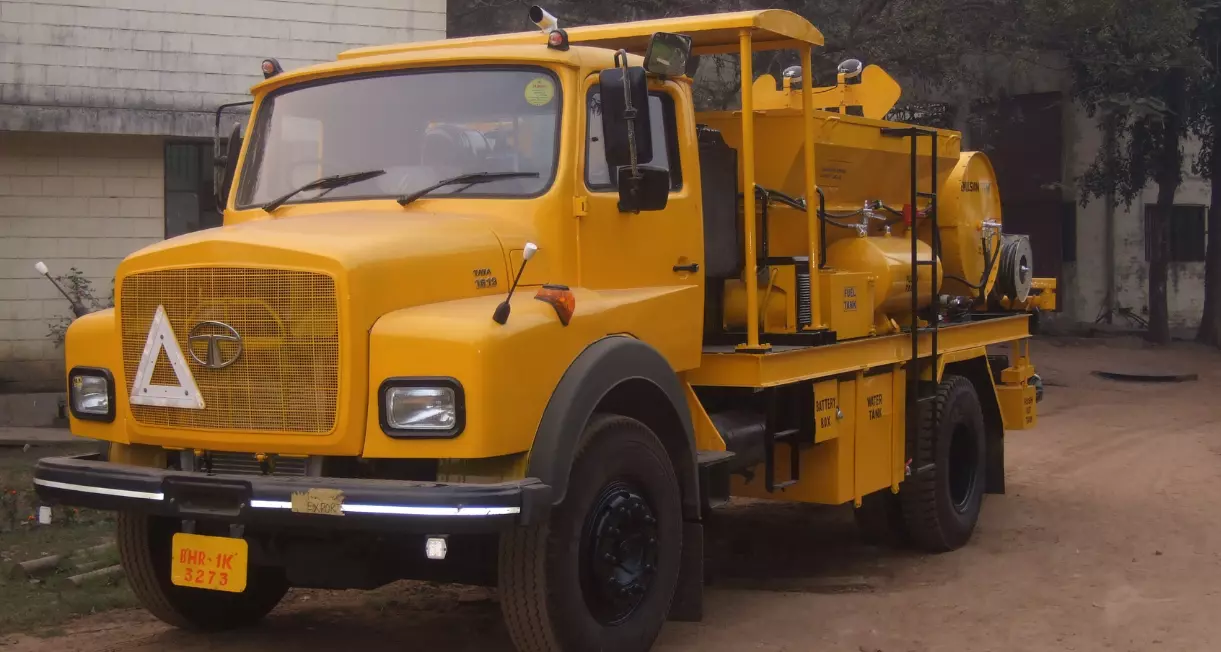

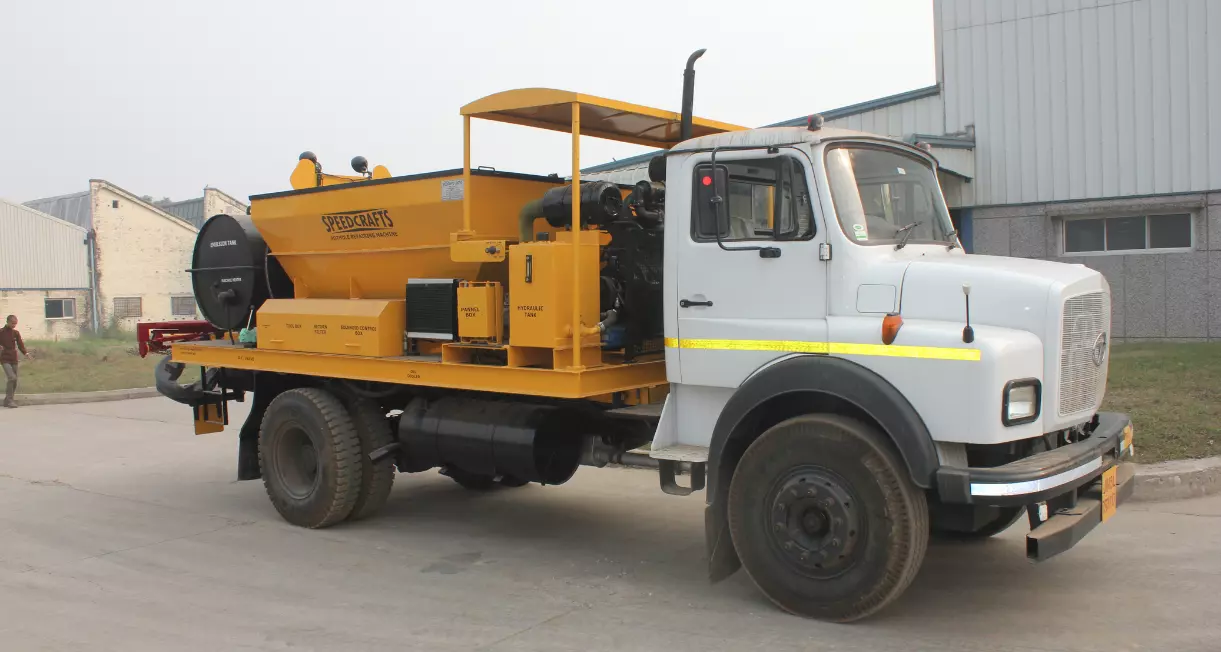

Chassis
TATA Model 1613/42 or equivalent
Dimensions
Length 8650 mm.
Width 2400 mm.
Height 2900 mm.
Discharge Nozzle And Coating System
General Proficient of 100% coating aforementioned to discharge
Nozzle Machined aluminum in the company of internal spray ring tapered to pick up the material pace
Coating System Drench bath at nozzle internal spray ring
Tank
Asphalt tank 950 ltrs.
Insulation Tightly covered fully insulated tank
Openings Rapid opening of 200m
Heating 6000 watt – 110V/220V.
Fuel tank 75 ltrs.
Flush tank 150 ltrs.
Engine
Horsepower Least 63 HP.
Filter Oil bath.
Battery 12 V/19 Plates.
Working Area
Total 100 Square metre.

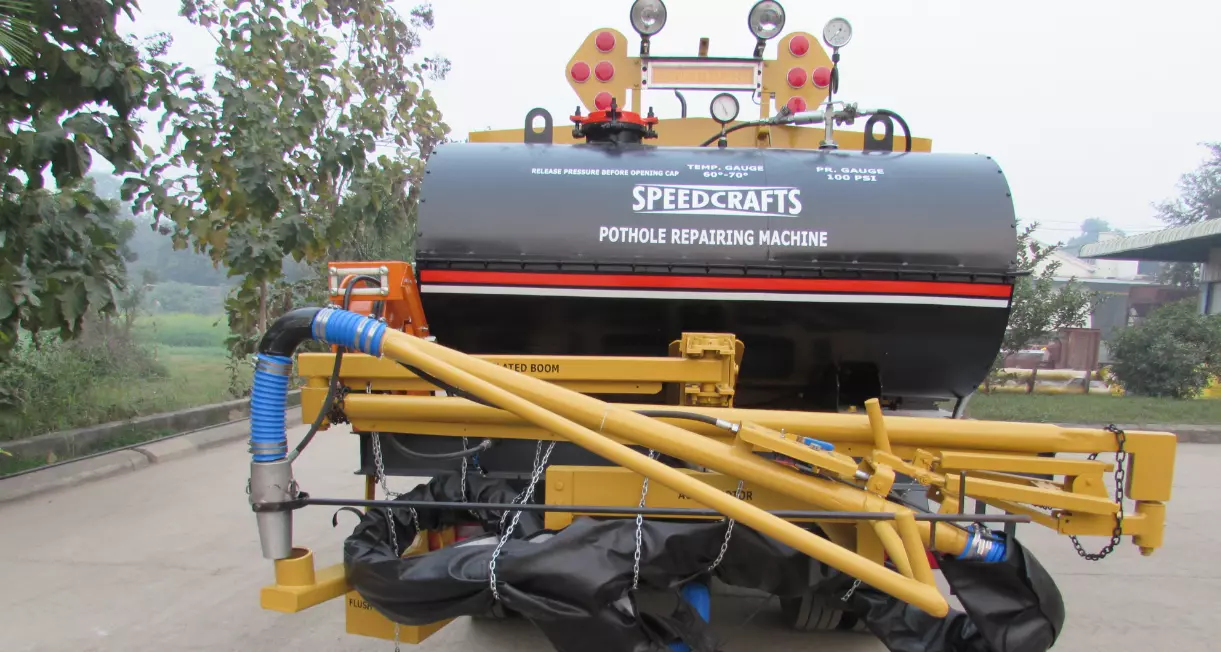

Tri-Fold Articulated Boom With Counter-Weighted Arm
Radius Completely coherent 6360mm
Vertical stroke 1525mm above to 610mm below pavement-self supporting feature
Controls Operating location 1830mm from material spray minimum
Air High Degree lobe blower
Aggregate Delivery System
Type Screw supplied to rear mounted power flow positive displacement air lock
Air lock Rear mounted.
Hopper capacity 4.5cu.m with optional 6cu.m
Hydraulic System
Pump Negligible noise vane
Flow controls Pressure compensating
Hydraulic tank 85ltrs with sight measurement
Filters Dual section & return filter
