Wet Mix Macadam Plant

  • Home
  • Wet Mix Macadam Plant
1-15-711x331 Wet Mix Macadam Plant

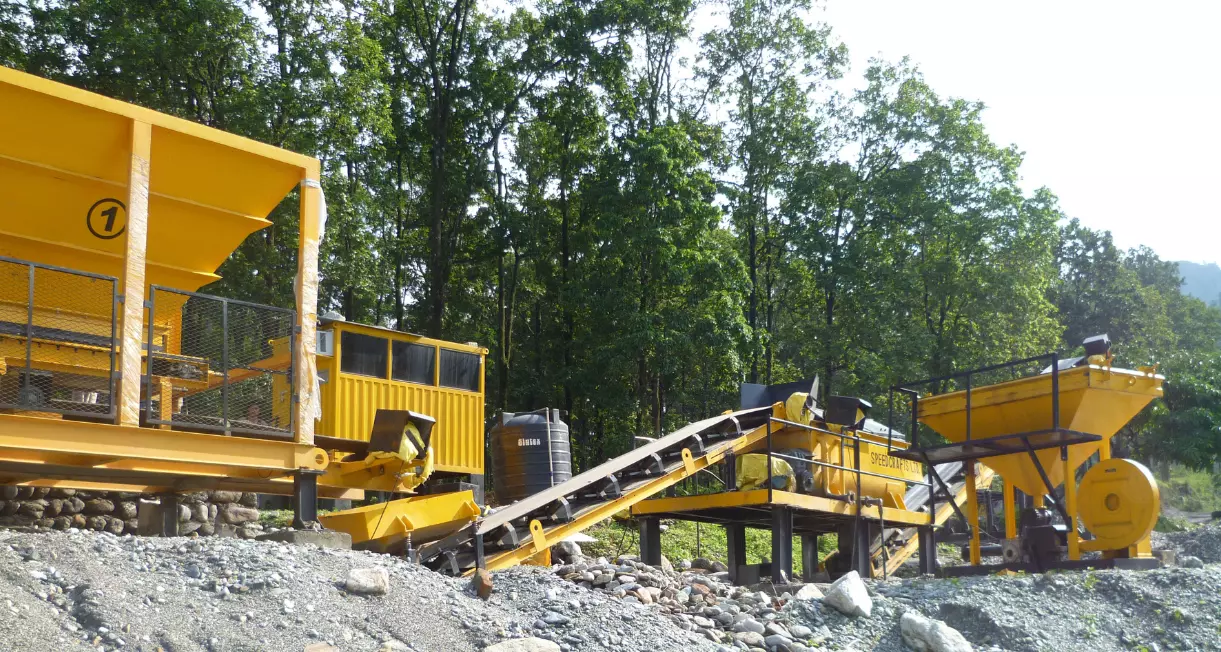

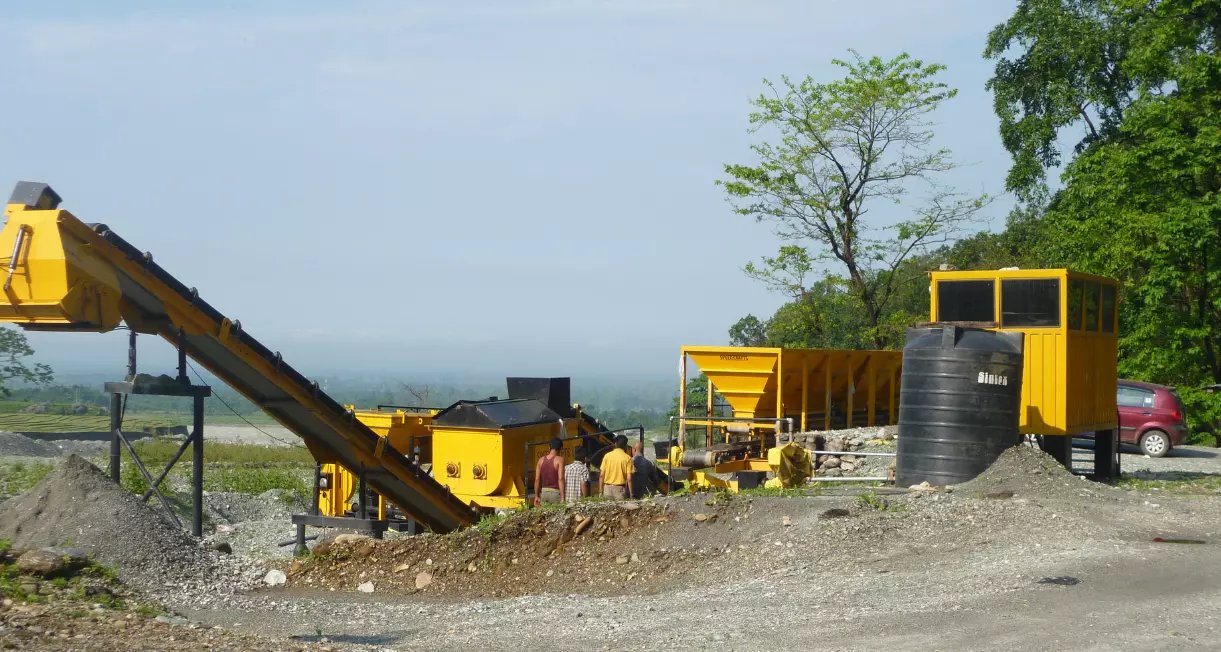

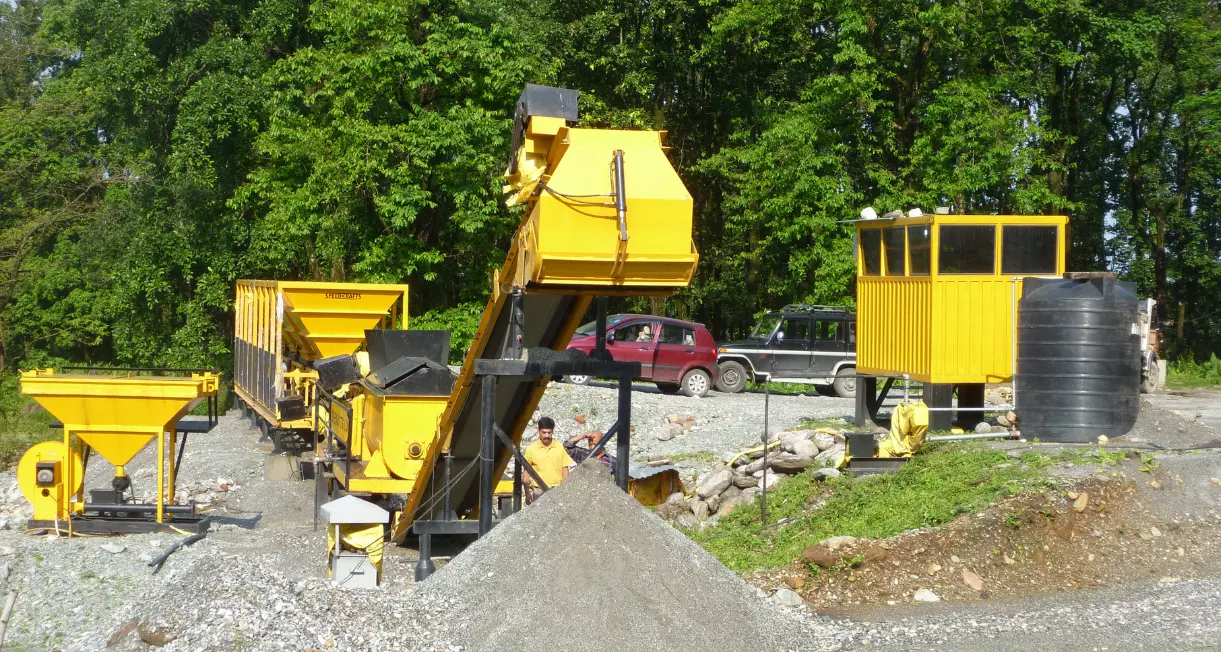

Features of Wet Mix Macadam Plant
  • Modern Wet Mix Macadam Technology.
  • Produces High Quality Mix.
  • Portable or Stationary.
  • High Production Rate.
  • Easy to Operate.
  • Highly Accurate Aggregate & Additives Feeder.
  • Manufactured as per MORTH Specification.

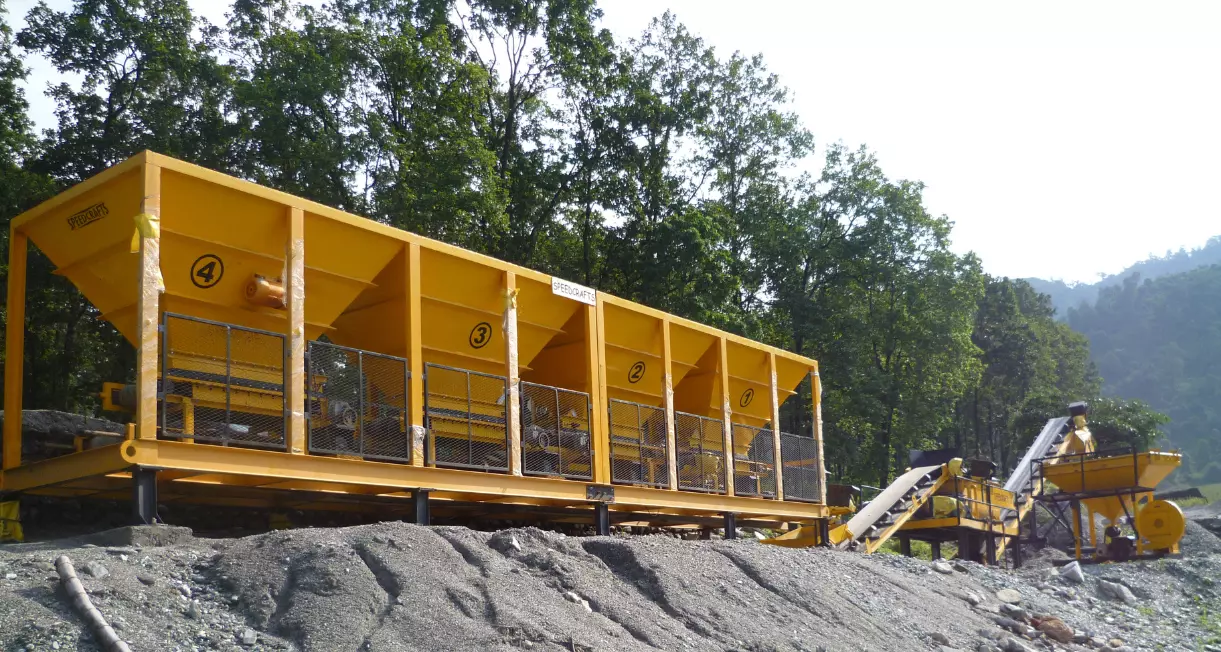

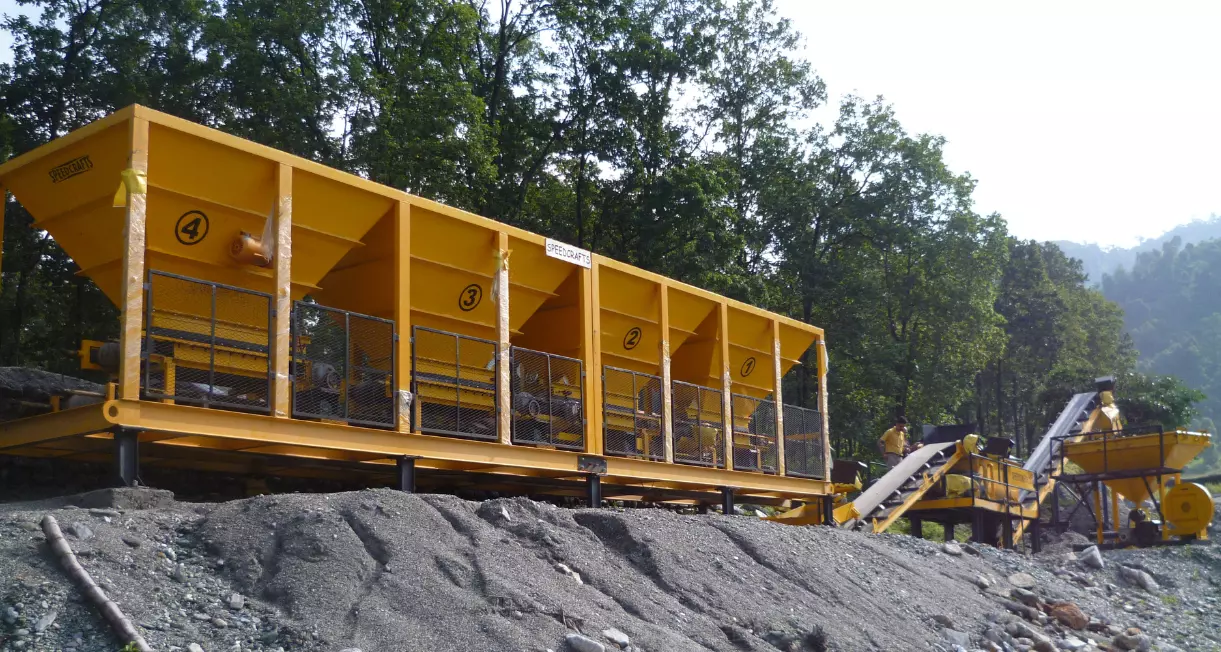

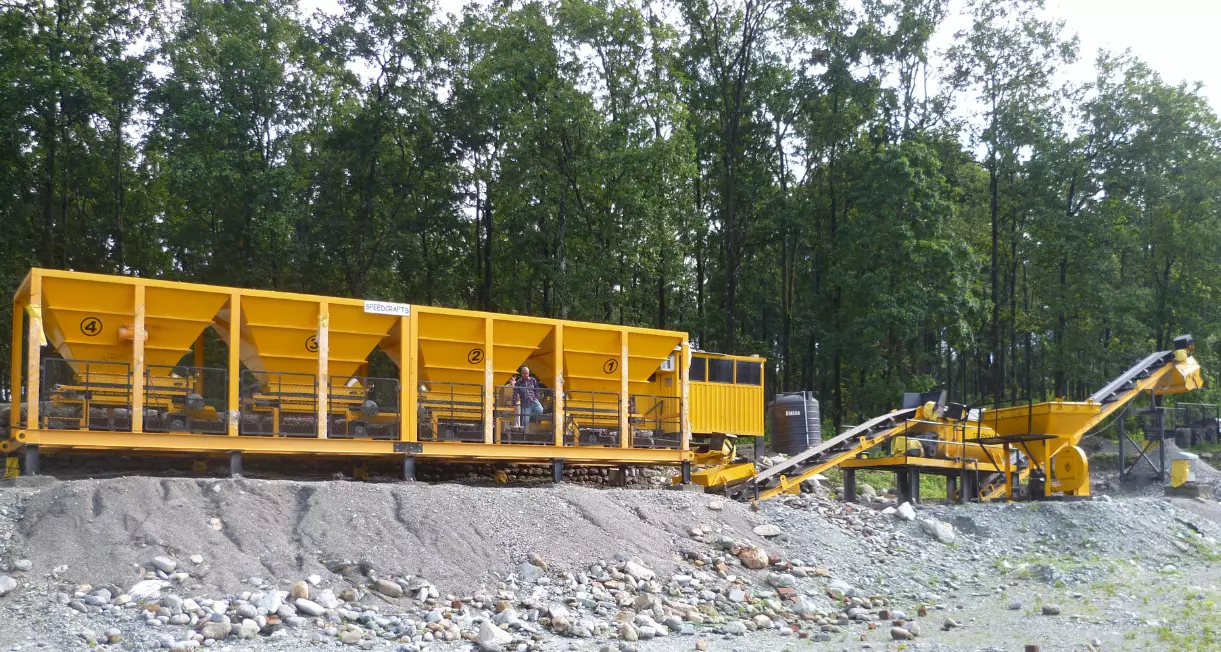

4 - Bin Feeder

It is of single chassis construction. At each Bin a radial gate is provided which can be opened in any position to regulate the aggregate flow. Individual endless belts are provided, below the gates to discharge material onto the gathering belt.

Vibrating Screen

A single-deck vibrating screen is provided on the slinger conveyor to remove oversize aggregates received from the 4-bin feeder.

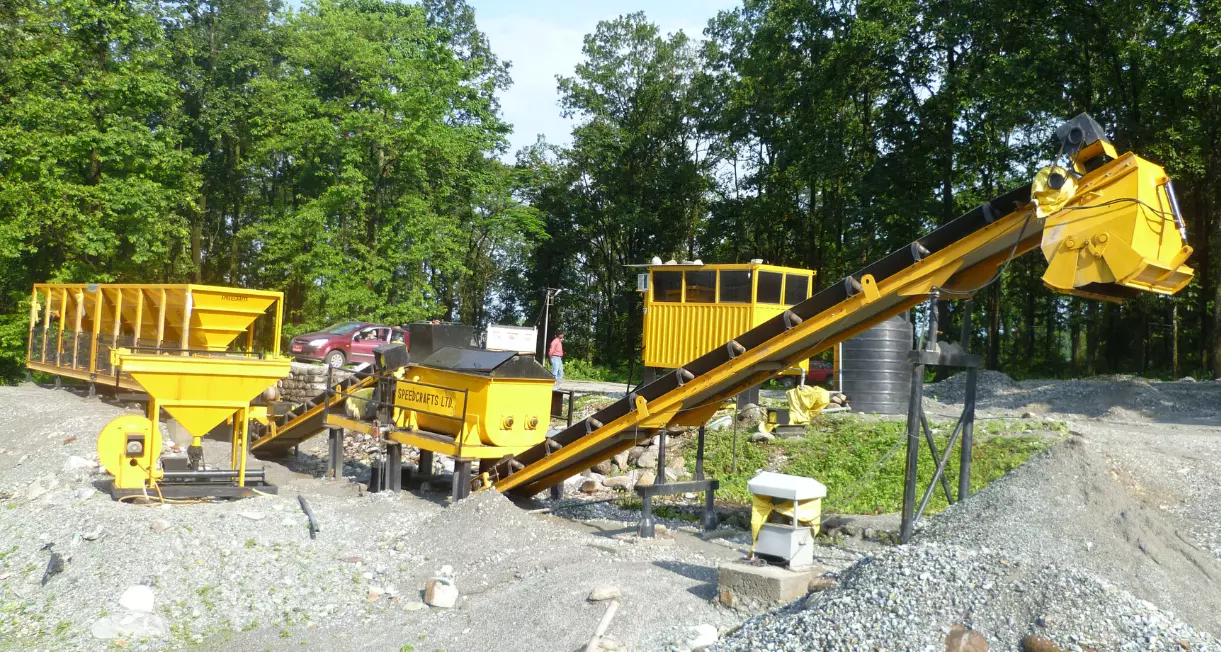

Slinger Conveyor

An inclined conveyor with 600 mm. wide belt mounted on idlers receives aggregate from the gathering conveyor and feeds it to the pug mill.

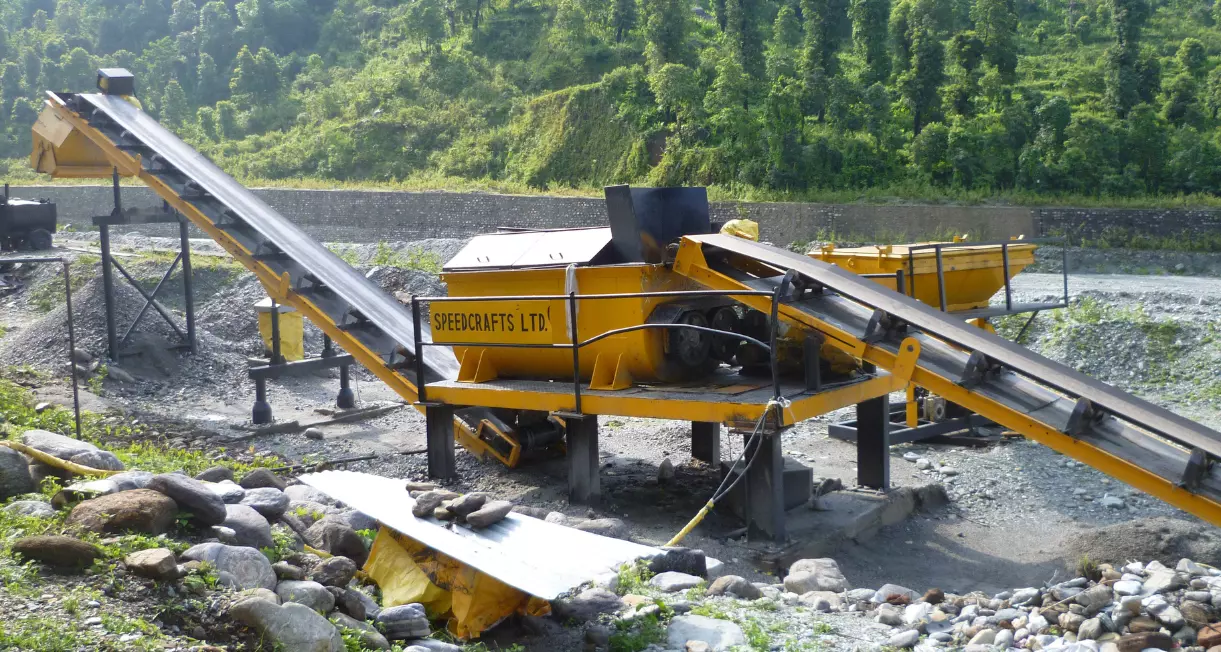

Pug Mill

A twin shaft pug mill mounted on antifriction bearing provides quick, continuous and homogeneous mix of aggregates and additives.

Water Tank

One / Two Water Tanks of 15 / 20 MT. capacity each are provided, fabricated from steel plates with manhole, flowmeter, pump etc.

Mineral Filler

Fabricated from steel plates, it feeds the required quantity of additives to the pug mill.

Control Cabin

A fully automatic Control Panel is provided for controlling the quantity and quality of production with operator sitting in Air-conditioned comfort.

Optional

Variable Feeding Device can be provided for Belt Feeder. Wet Mix Storage Silo.

Miscellaneous

  • All components used in wet mix plant are of top quality, with ISI Certification wherever available.
  • All moving parts and electrical parts of wet mix plant are provided with safety covers.
  • Ease of Lubrication and dismantling has been built into the design for efficient maintenance and repair.
  • Fabricated parts of wet mix plant are thoroughly cleaned and treated before painting.
  • Manufacturing is done with advance, internationally recognized techniques.
TECHNICAL SPECIFICATION
Model WMM-60 WMM-100 WMM-160
Output (TPH) 60 100 160
Cold Feed
Gathering Conveyor (mm.) 600 600 600
Belt Feeder Width (mm.) 500 500 500
No. of Bins 4 4 4
Bin Capacity (MT.) 8 10 12
Slinger Conveyor
Conveyor Width (mm.) 600 600 600
Pugmill
Capacity (cu. m.) 1.4 1.6 1.9
No. of Arms 20 26 32
Water Tank Capacity (MT.) 15 15 20
Mineral Filler Capacity (MT.) 2 3 5
Power Requirements
4 Bin Feeder (HP) 4 x 1.5 4 x 1.5 4 x 2.0
Gathering Conveyor (HP) 5 5 7.5
Slinger Conveyor (HP) 5 5 7.5
Vibrating Screen (HP) 0.5 0.5 0.5
Pug Mill Drive (HP) 15 25 50
Hydraulic Power Pack (HP) 3 3 3
Water Pump (HP) 2 3 5
Blower (HP) 2 2 3
