Inline Concrete Plant

With the years of experience and well trained professionals, we have come up with a wide range of concrete batching machine. The machines designed and developed in our facilities are technologically uncommon. Fully automatic concrete batching plants are available up to 60 cbm/hr capacity. These plants are not only highly advanced and durable, but also fully automatic. Following all the quality guidelines set by the industry experts, our experts manufacture such a range using superior-grade raw material. Our company is offering this range in a number of sizes, designs with customization solutions.

Image Gallery

Download Brochure

Features

Plants available in 30 / 45 / 60 cbm/hr capacity.
Equipped with Pan / Planetary / Twin Shaft Mixer.

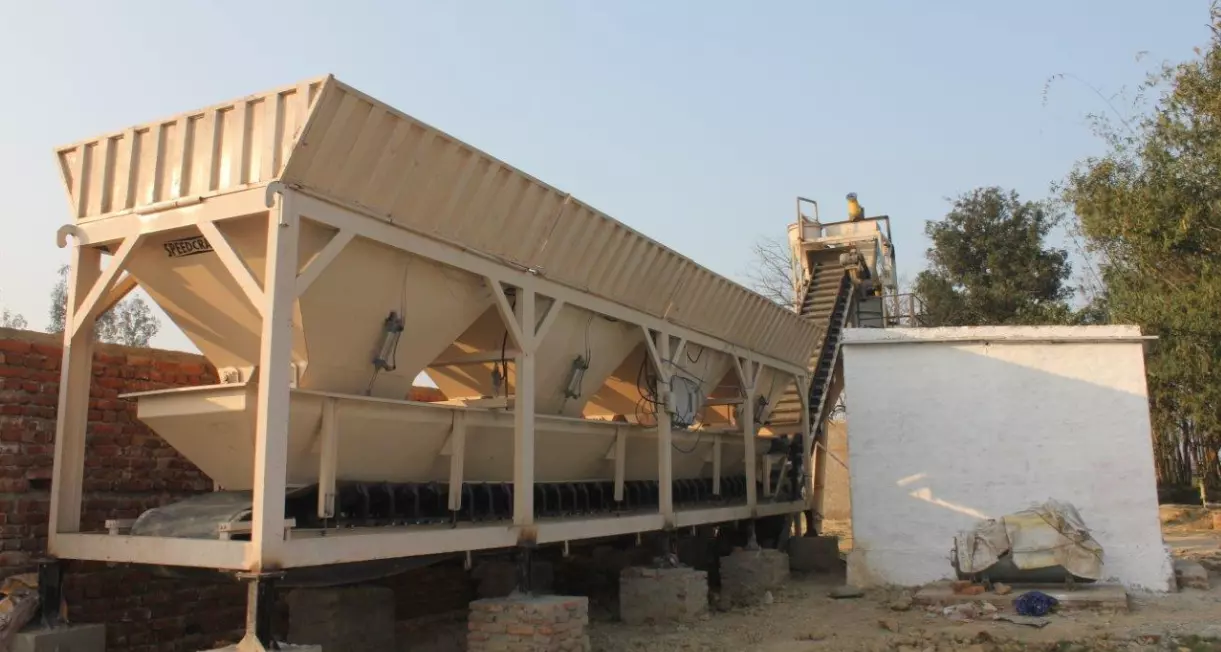

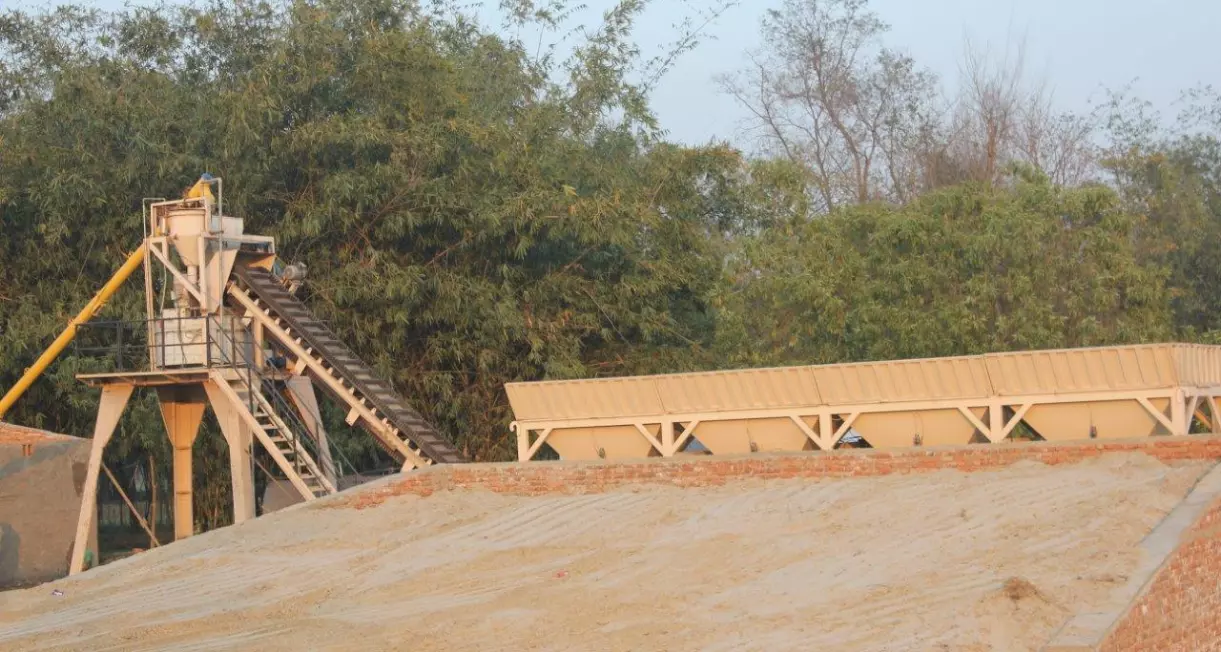

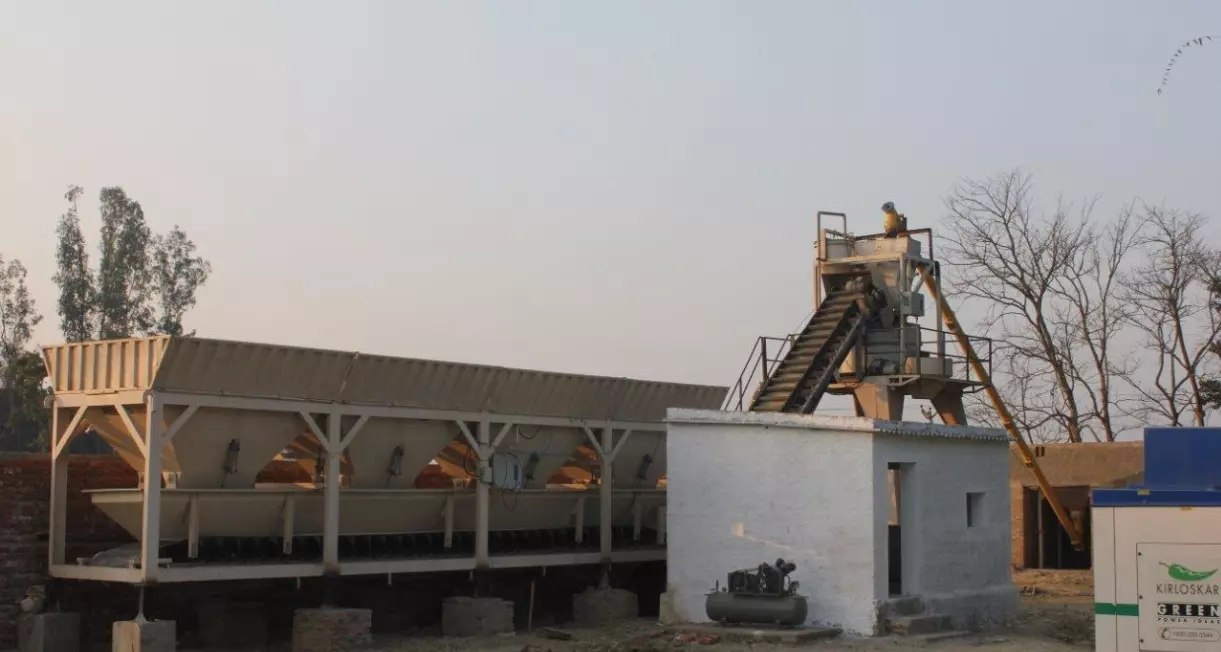

Inline storage of Aggregates.
Aggregate weighing conveyor suspended on load cells.

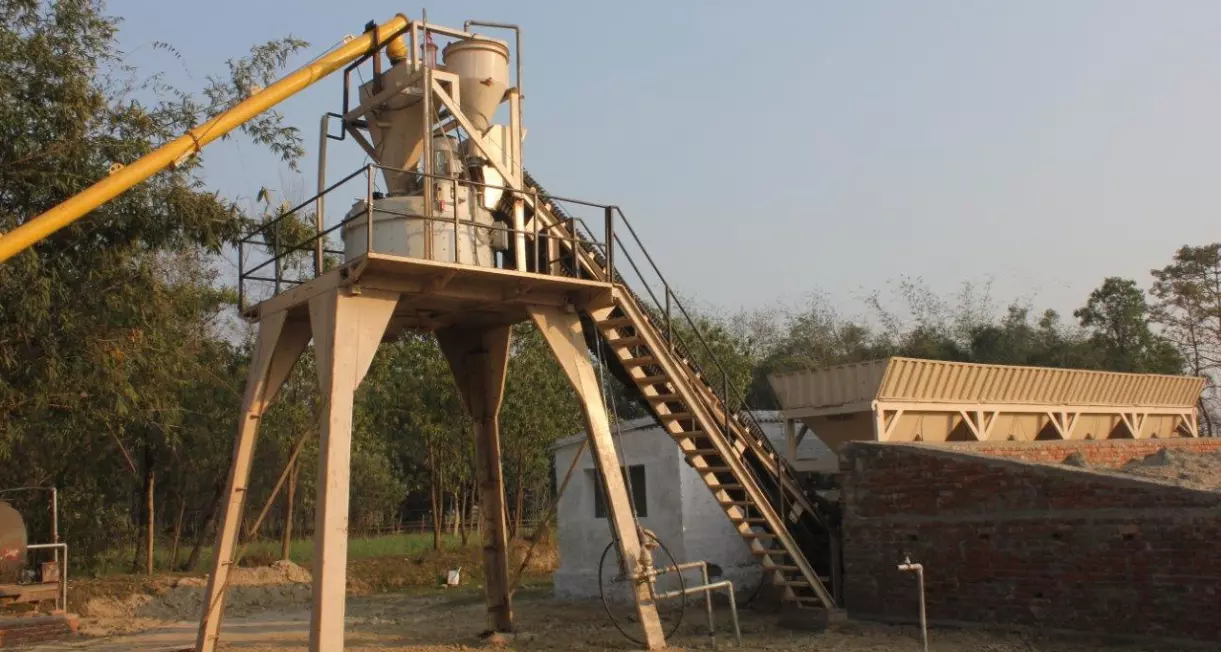

Inclined conveyor for feeding of aggregate into mixer.
Independent weighing system for Cement, Water & Additive.
Operation through Fully Automatic Electronic Control Panel.
Manufacturing is done with advanced, internationally recognized techniques at our State of the art facilities.
Global presence with prompt after sales support.
Dedicated R & D Department.

Optionals

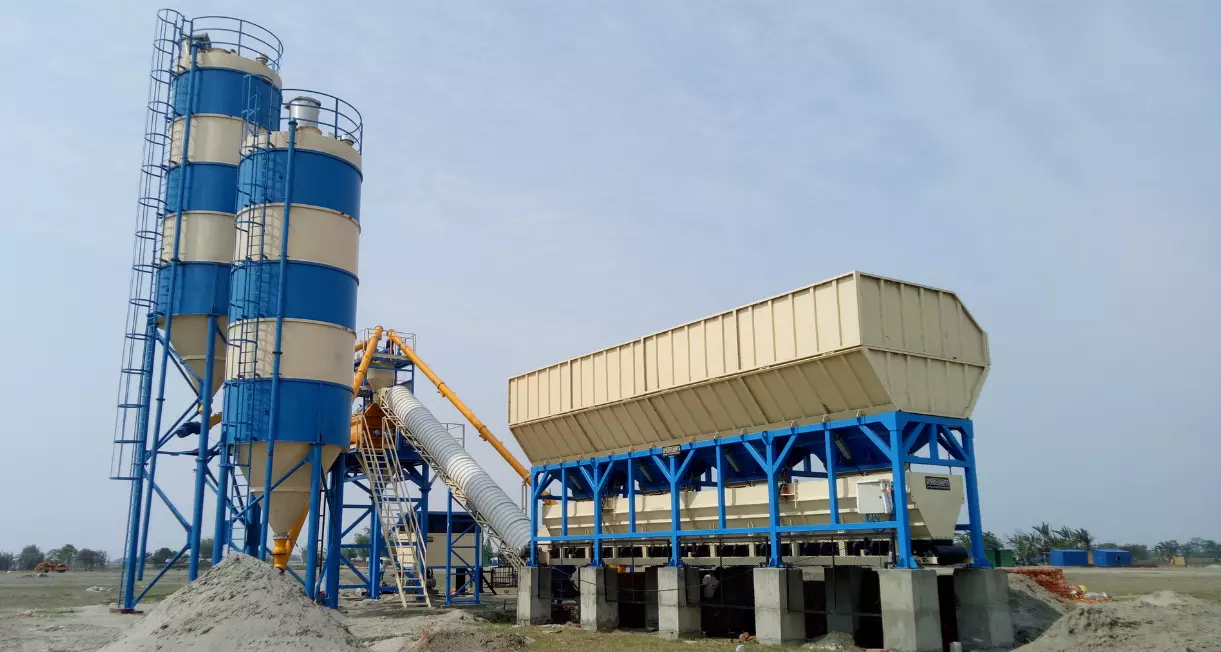

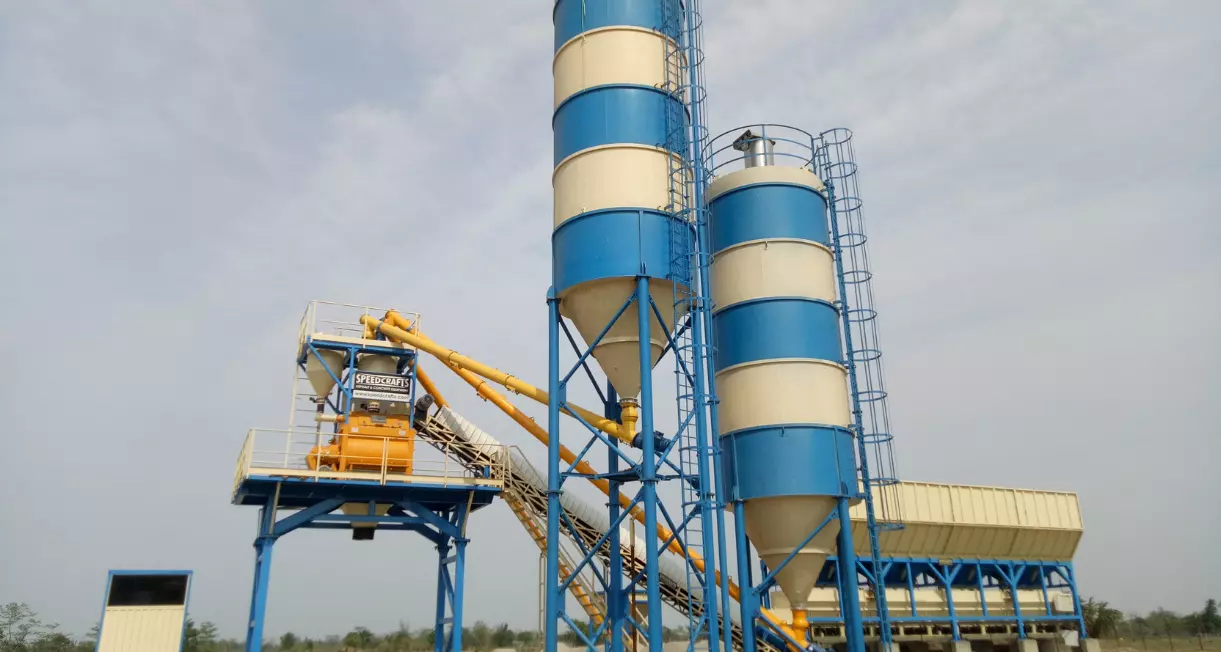

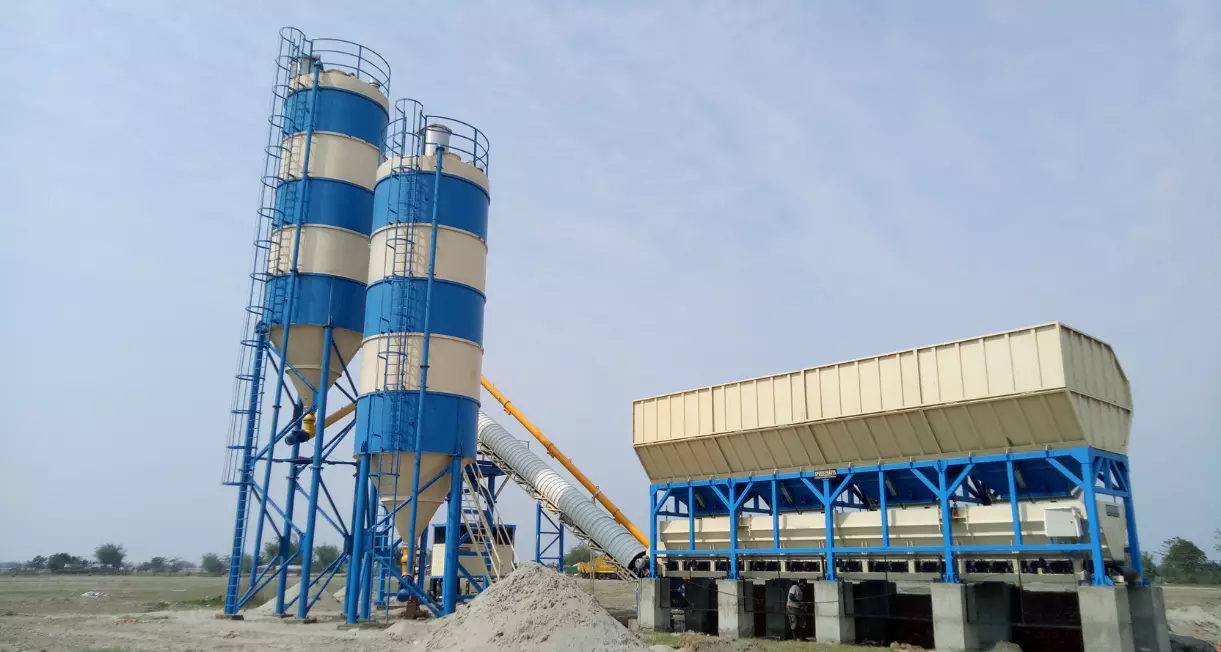

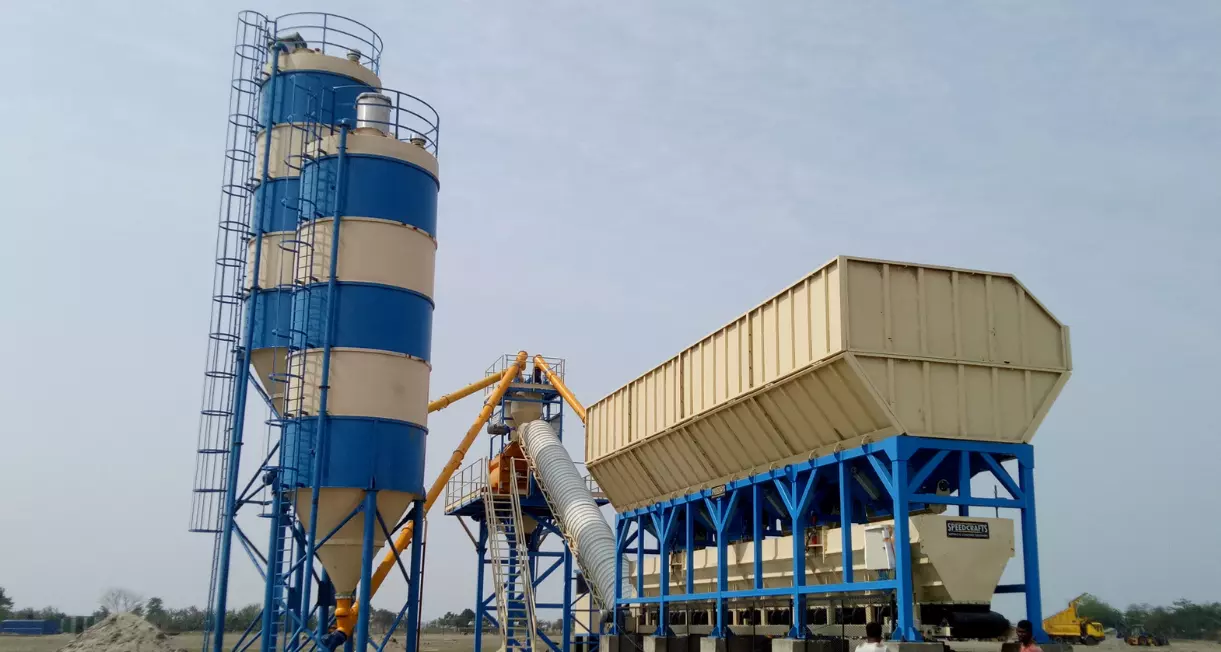

Cement / Fly Ash storage & conveying system up to 100 MT capacity.
Radial Conveyor for feeding of aggregate into the bins.

Mixer Features

Outstanding Homogenity In Short Time
Low Wear Design
Easy & Low Maintenance

Controls

PLC Based Control
SCADA Interface
Automatic & Manual Operation
Auto Correction of Water
Inventory Control Management

Transfer Belt

Corrugated Side wall
Cleat placement for box formation
40° angle for conveyance of material
Rugged structure for long life
Compact Placement of Plant

TECHNICAL SPECIFICATION

MODEL	SCP-30	SCP-45	SCP-60
Output (cbm/hr)	30	45	60
Type of Sand / Aggregate Bin	In Line	In Line	In Line
No. of Bins	4	4	4 / 5
Bin Capacity (Each)	8 cbm	10 cbm	12 cbm
Transfer Belt Width (Deep Bucket Type)	800 mm	800 mm	1000 mm
Type of Mixer	Pan	Planetary	Twin Shaft
Cement / Filler Weighing System	Included	Included	Included
Water Weighing System	Included	Included	Included
Admixture Weighing System	Included	Included	Included
Air Compressor	Included	Included	Included
Controls	SCADA Enabled	SCADA Enabled	SCADA Enabled
Auto + Manual Mode	Included	Included	Included
Inventory Management	Included	Included	Included
Discharge Height	4.1 mtr.	4.1 mtr.	4.1 mtr.
