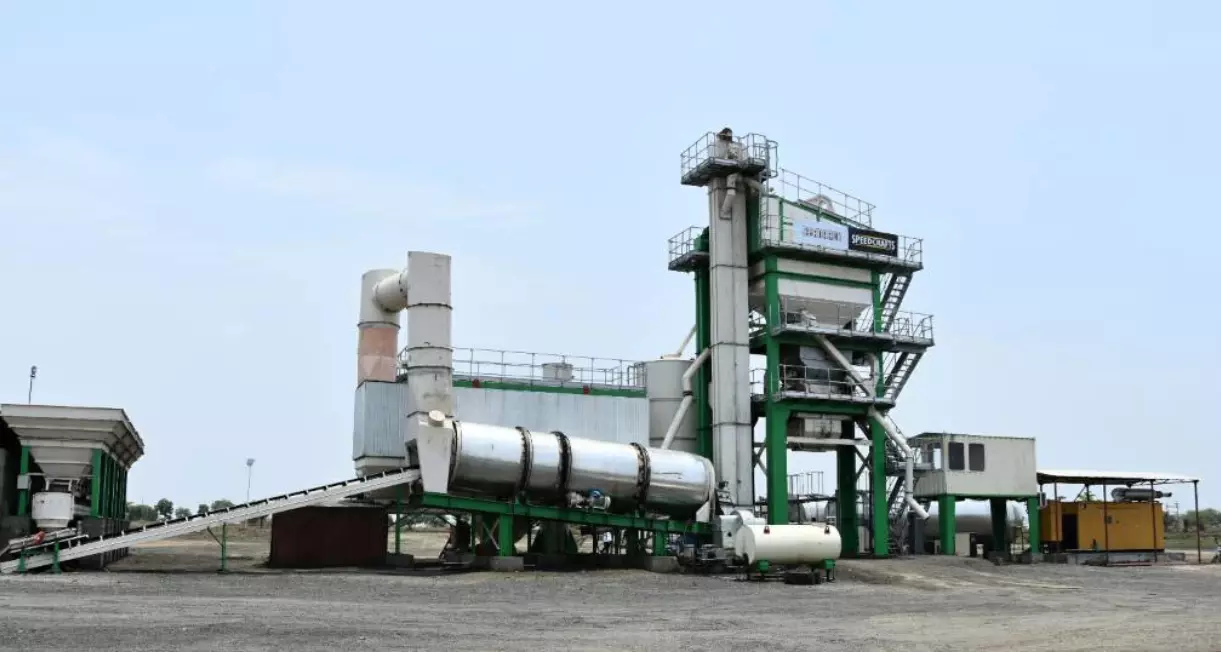

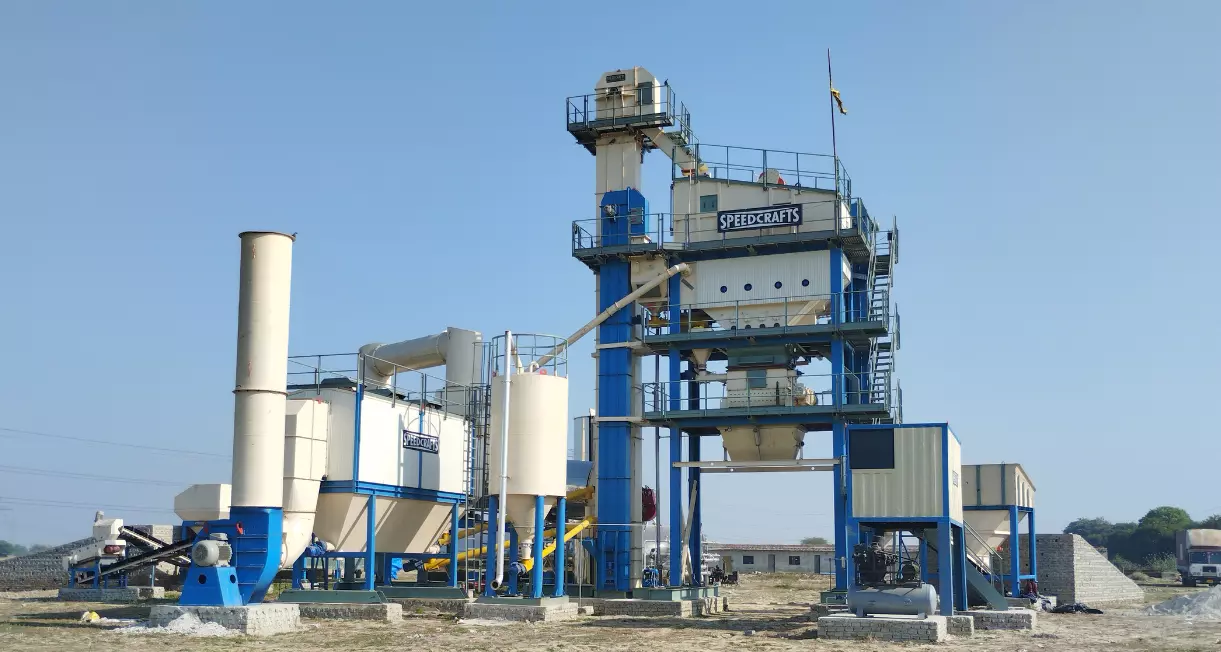

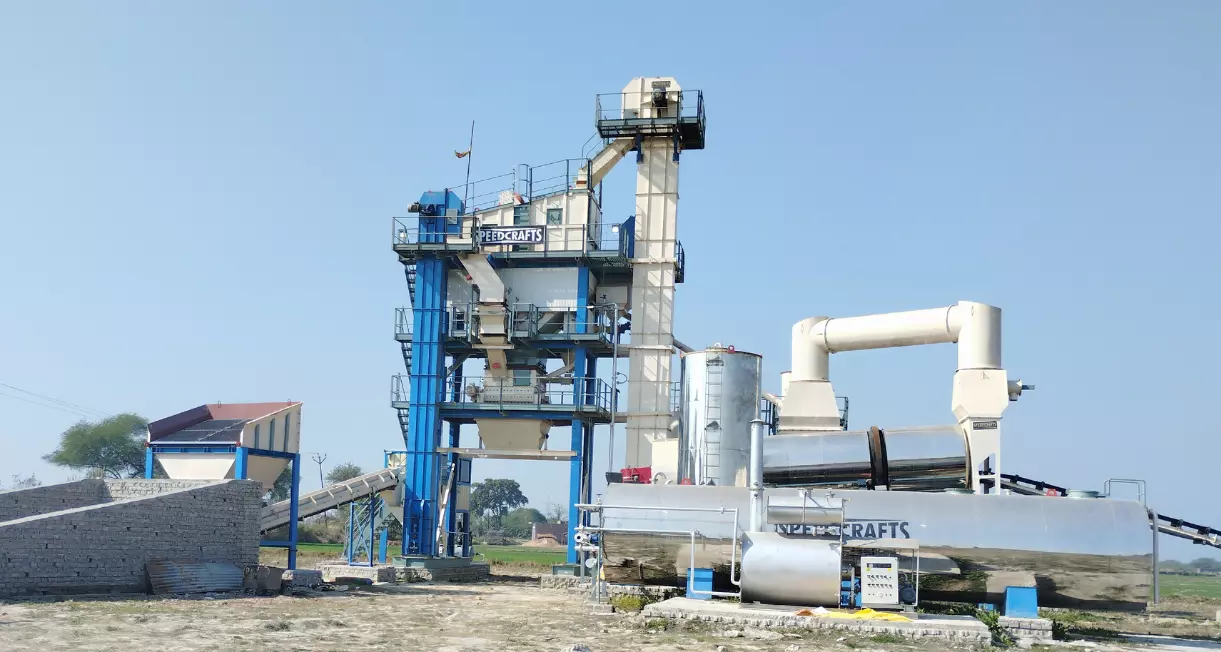

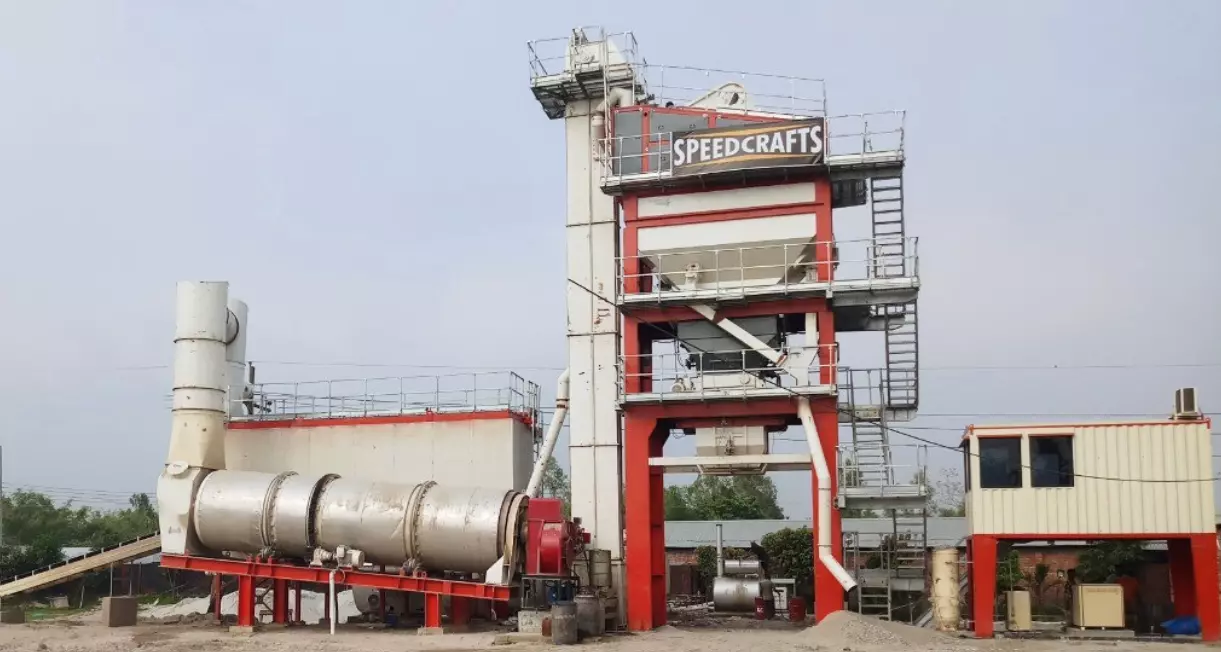

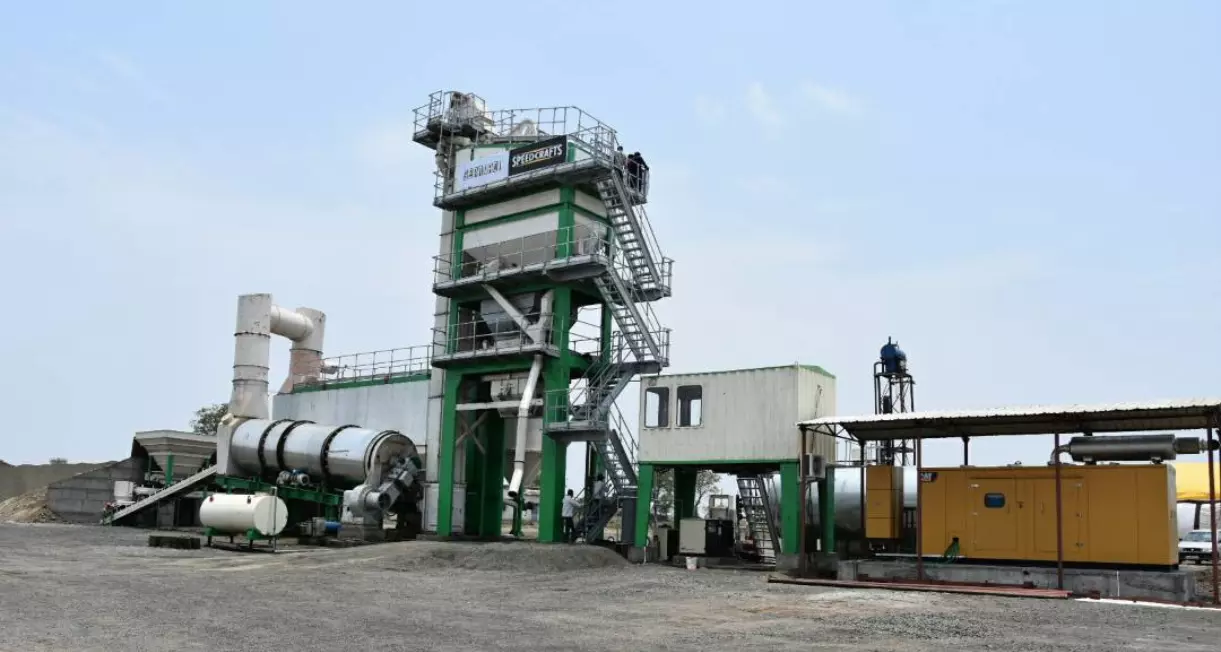

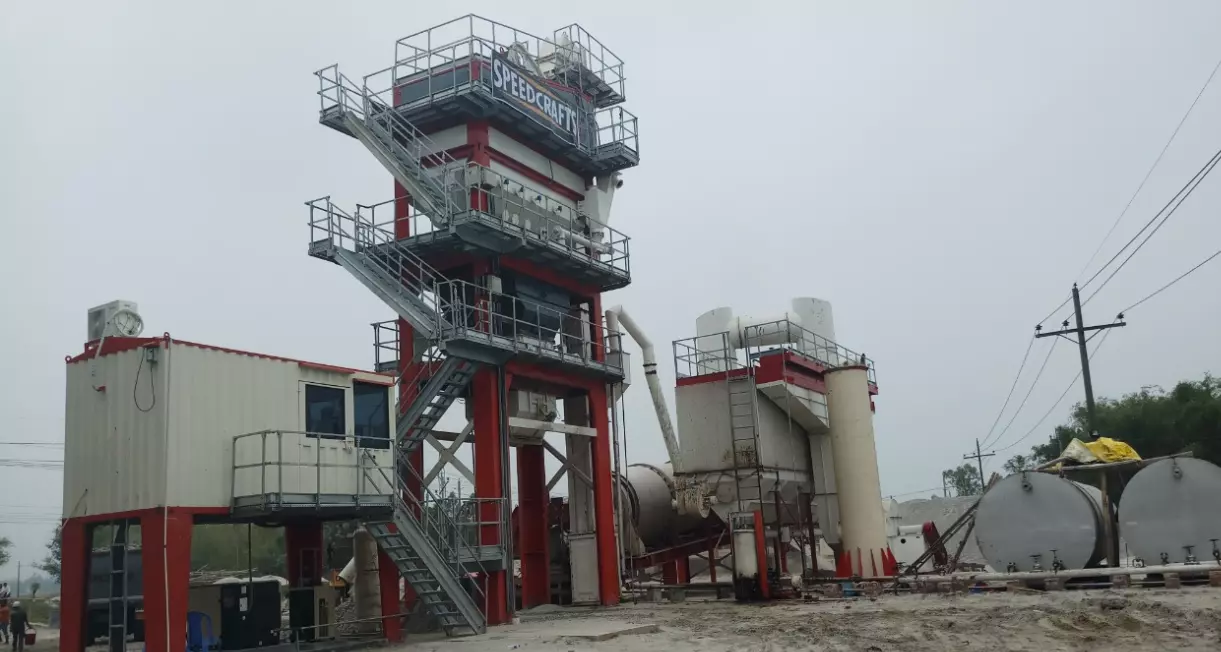

full-asphalt-batch-mix-plant Asphalt Batch Mix Plant

Our Asphalt Batch Mix Plants are manufactured under a technical collaboration with World Leaders in Batch Mix Technology, M/s Bernardi Impianti International, Italy. These plants are available in capacities ranging from 80 tph to 260 tph.

Salient Features of our Asphalt Batch Mix Plant :

  • User-friendly control
  • Fast and easy installation and start up
  • Durable and reliable
  • Low maintenance cost
  • Excellent fuel efficiency
Technical Specifications
Model Capacity
BS 80 80 tph
BS 110 110 tph
BS 150 150 tph
BS 175 175 tph
BS 200 200 tph
BS 260 260 tph

Dryer Drum

Is designed for longer life. Proven flight design ensures a perfect distribution of material to be dried. Positive drive is provided by means of a ring gear, coupled to a pinion driven by an inverter-controlled geared motor. The drum is guided through two rolling steel rings on 4 rollers with bearings mounted on a sturdy main frame.

Burner

Our universal burners work with either diesel or heavy oil. Special heated adjustable cam is provided to regulate the flame length. A gate with control screw enables the flame to be enlarged or reduced.

Batching Tower

Is fully automatic to offer the best guarantee in terms of product quality. The operator can choose all the required process parameters and all components of the tower will become automatically set to obtain the requested product. The main units of the tower such as elevator, screen, hot aggregate storage bins and mixer are designed for long life, low maintenance and reliability.

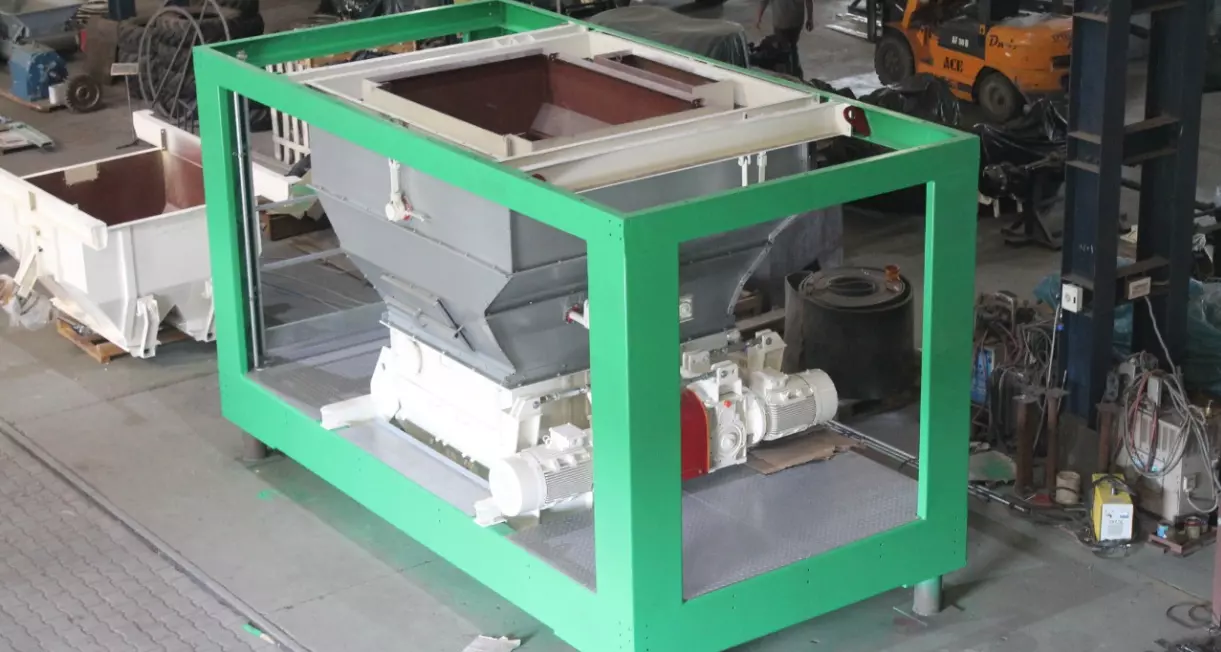

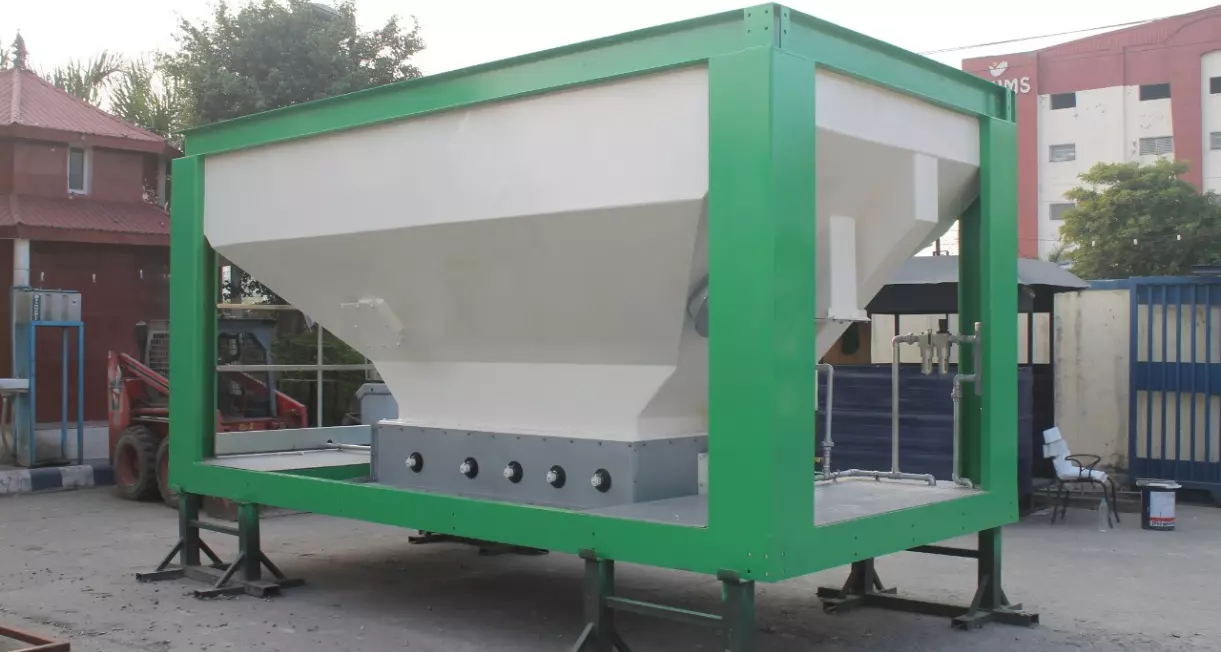

Cold Feed Bins

Plants are provided with abrasion resistant cold feed bins. Bins have self-relieving bottom opening, which eliminates bridging of the feeders. Each bin is provided with variable speed inverter drive through geared motor.

Control Unit

Computerised Controls are provided for burner, temperature, damper, emergency plant shut down, sequential start and stop, etc. The display shows production TPH, Aggregate TPH, Asphalt TPH & Mix Temperature. Daily production datas can be printed out for records. All controls are mounted on a centralised control panel inside the control room.

Bag House Filter

Bag house filters remove the dust from the dryer’s exhaust and comply with the most severe environmental regulations. They are fitted with safety devices for temperature control and automatic counter-flow cleaning through main exhauster and complete system for recovery and re-use of filler.

Bitumen Tank

Tanks are insulated with rock-wool, available in horizontal type and heated by thermal oil with automatic temperature adjustment. Suitable valves to control the charge, transfer and discharge of bitumen among tanks are provided.
